Running AI/ML workloads on NAISS systems

Scope¶

• Will be covered:
  • Introduction for running Deep Learning workloads on the main NAISS AI/ML resource
• Will not be covered:
  • A general introduction to machine learning
  • Running classical ML or GOFAI
  • General HPC intro

NAISS GPU resources overview¶

1. Alvis (End-of-life 2026-06-30)
   • NVIDIA GPUs: 332 A40s, 318 A100s, 160 T4s, 44 V100s
   • Only for AI/ML
2. Arrhenius (to be in operation Q2 2026)
   • 1528 NVIDIA GH200s
3. Dardel (Probably end-of-life 2026)
   • 248 AMD MI250X
4. Bianca
   • 20 NVIDIA A100s
   • Only for sensitive data

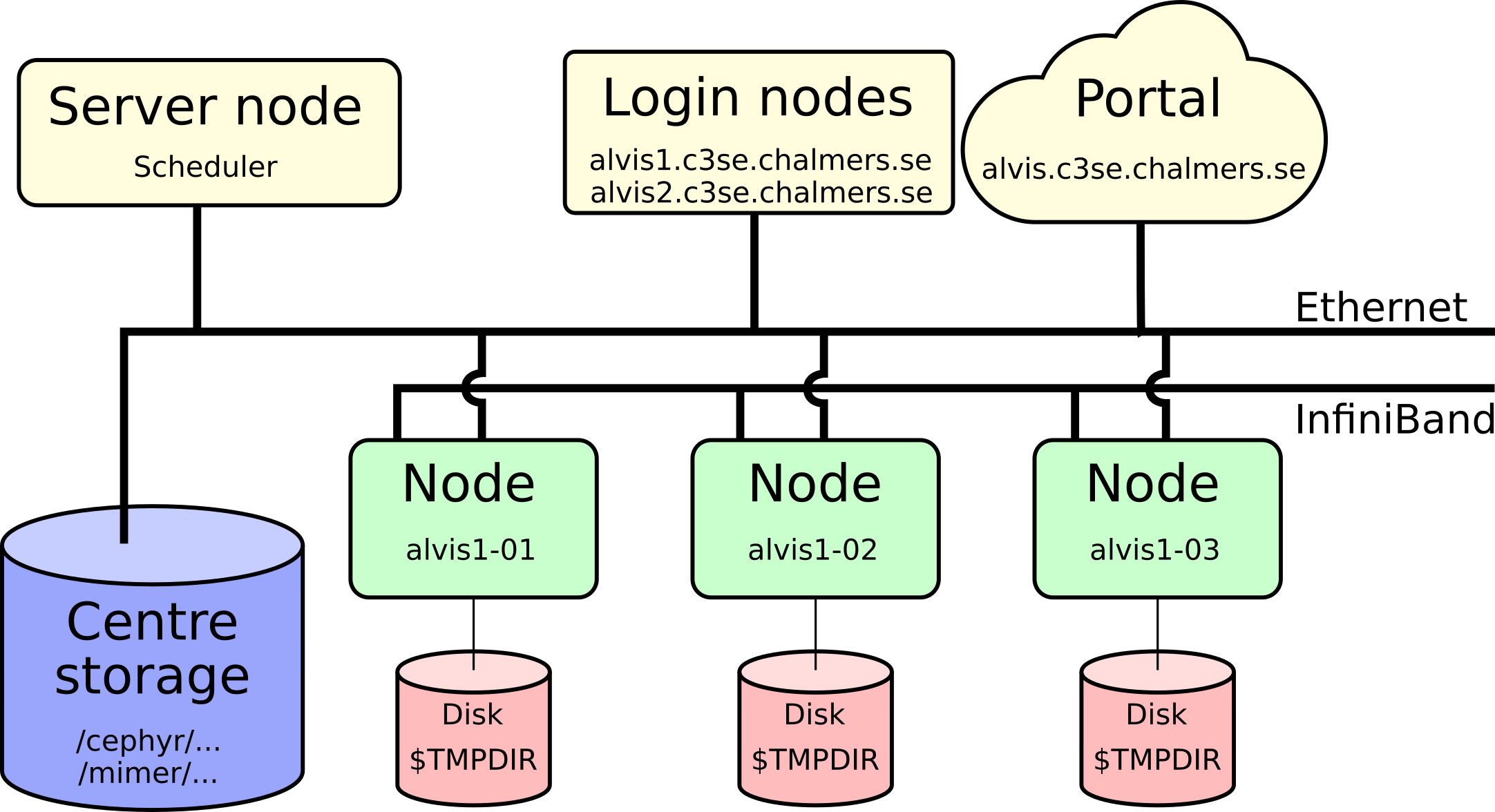

Alvis specifics¶

• What is potentially different on Alvis?
• See extended version at Alvis introduction material

Connecting - Firewall¶

• Firewall limits connections to within SUNET
• Use a VPN if needed

Log-in nodes¶

• alvis1.c3se.chalmers.se has 4 T4 GPUs for light testing and debugging
• alvis2.c3se.chalmers.se is dedicated data transfer node
• Will be restarted from time to time
• Login nodes are shared resources for all users:
  • don't run jobs here,
  • don't use up too much memory,
  • preparing jobs and
  • light testing/debugging is fine

SSH - Secure Shell¶

• ssh <CID>@alvis1.c3se.chalmers.se, ssh <CID>@alvis2.c3se.chalmers.se
• Gives command line access to do anything you could possibly need
• If used frequently you can set-up a password protected SSH-key for convenience

Alvis Open OnDemand portal¶

• https://alvis.c3se.chalmers.se
• Browse files and see disk and file quota
• Launch interactive apps on compute nodes
  • Desktop
  • Jupyter notebooks
  • MATLAB proxy
  • RStudio
  • VSCode
• Launch apps on log-in nodes
  • Desktop
• See our documentation for more

Remote desktop¶

• RDP-based remote desktop solution on shared login nodes (use portal for heavier interactive jobs)
• In-house-developed web client:
  • https://alvis1.c3se.chalmers.se
  • https://alvis2.c3se.chalmers.se
• Can also be accessed via any desktop client supporting RDP at alvis1.c3se.chalmers.se and alvis2.c3se.chalmers.se (standard port 3389).
• Desktop clients tend to give a better experience.
• See the documentation for more details

Files and Storage¶

• /cephyr/ and /mimer/ are parallel filesytems, accessible from all nodes
• Backed up home directory at /cephyr/users/<CID>/Alvis
• Project storage at /mimer/NOBACKUP/groups/<storage-name>
• The C3SE_quota shows you all your centre storage areas, usage and quotas.
  • where-are-my-files available on /cephyr
• File-IO is usually the limiting factor on parallel filesystems
• Prefer a few large files over many small

Datasets¶

• When allowed, we provide popular datasets at /mimer/NOBACKUP/Datasets/
• Request additional dataset through the support form
• It is your responsibility to make sure you comply with any licenses and limitations
  • In all cases only for non-commercial research applications
  • Citation often needed
• Read more on the dataset page and/or the respective README files

Software¶

• Containers through Apptainer
• Optimized software in modules
  • Flat module scheme, load modules directly
• Read the Python instructions for installing your own Python packages

GPU hardware details¶

SLURM specifics¶

• Main allocatable resource is --gpus-per-node=<GPU type>:<no. gpus>
  • e.g. #SBATCH --gpus-per-node=A40:1
• Cores and memory are allocated proportional to number of GPUs and related node type
• Maximum 7 days walltime
  • Use checkpointing for longer runs
• Jobs that don't use allocated GPUs may be automatically cancelled

GPU cost on Alvis¶

• Example: using 2xT4 GPUs for 10 hours costs 7 "GPU hours" (2 x 0.35 x 10).

Monitoring tools¶

• You can SSH to nodes where you have an ongoing job
  • From where you can use CLI tools like htop, nvidia-smi, nvtop, ...
• Use job_stats.py <JOBID> to view graphs of usage
• jobinfo -s can be used to get a summary of currently available resources

Running ML¶

• Machine learning in PyTorch and TensorFlow
• Using GPUs
• Checkpointing

PyTorch¶

• Move tensors or models to the GPU "by hand"

import torch

device = "cuda" if torch.cuda.is_available() else "cpu"
a = torch.Tensor([1, 1, 2, 3]).to(device)

PyTorch Lightning¶

• Lightning is wrapper to hide PyTorch boilerplate
• Trainer and LightningModule handles moving data/model to GPUs

import lightning as L
import torch


class LightningTransformer(lightning.LightningModule):
    def __init__(self, ...):
        super().__init__()
        self.model: torch.nn.Module = ...

    def training_step(self, batch, batch_idx): ...

    def configure_optimizers(self): ...

Pytorch and PyTorch Lightning Basic Demo¶

• Demo

TensorFlow¶

• Automatically tries to use a single GPU
• Will also pre-allocate GPU memory, hiding actual memory usage to external monitoring tools
• https://www.tensorflow.org/guide/gpu
• Demo

import tensorflow as tf

print(tf.config.list_physical_devices("GPU"))

Performance and GPUs¶

• What makes GPUs good for AI/ML?
• And what to think about to get good performance out of it?

General-Purpose computing on GPUs¶

• Single Instruction Multiple Threads
  • Massively parallel on 1000s to 10000s of threads
• Specialised Matrix-Multiply Units (Tensor Cores)
  • Most DL architectures can be reduced to mostly GEneral Matrix Multiplications

Precision and performance (×10¹² OP/s)¶

TensorCores for GEMM computations¶

• FP32 mixed precision GEMM computations with TF32
  • TensorFlow (and Lightning) does this by default
  • PyTorch only for convolutions by default
  • torch.set_float32_matmul_precision('high') to enable for matmul
• Tensor dimensions must be multiple of 8

Automatic Mixed Precision¶

• Calculate with float16 when possible
• Uses loss scaling to not loose small gradient values
• Read more: source, NVIDIA, PyTorch, TensorFlow

Tensor Core Shape Constraints¶

• To use TensorCores in FP16 precision the following should be in a multiple of 8 in FP16 (source):

• Mini-batch

• Linear layer width/dimension
• Convolutional layer channel count
• Vocabulary size in classification problems (pad if needed)
• Sequence length (pad if needed)

Arithmetic Intensity¶

• Computational work in a CUDA kernel per input byte
• If too low you're memory bound
• To increase:
  • Concatenate tensors when suitable for larger inputs to layers
  • Use channels last format for conv layers
  • Wider layers (but only if it makes sense)

Don't Forget Non-Tensor Core Operations¶

• Non-Tensor Cores operations are up to 10x slower
  • Optimising/reducing these can give most overall improvement
• Compiling models can help (JIT, XLA)

GPU monitoring¶

• nvtop & nvidia-smi
  • utilization: percent of time any SM is used (not percent of SMs used)
• job_stats.py JOBID (Alvis/Vera only)
  • power consumption as proxy for occupancy
• See profiling section later for more detailed results

Performance and parallel filesystems¶

• Performance considerations for data loading on parallel filesystems

The parallel filesystem¶

Striping on parallel filesystems¶

Small vs big files¶

Performance suggestions¶

• Prefer a few large files over many small
• Many good implementations: HDF5, NetCDF, Arrow, Safetensors, ...
• Containers are faster for python environments on start-up

Profiling¶

Programmers waste enormous amounts of time thinking about, or worrying about, the speed of noncritical parts of their programs, and these attempts at efficiency actually have a strong negative impact when debugging and maintenance are considered. We should forget about small efficiencies, say about 97% of the time: premature optimization is the root of all evil.

Yet we should not pass up our opportunities in that critical 3%. A good programmer will not be lulled into complacency by such reasoning, he will be wise to look carefully at the critical code; but only after that code has been identified. It is often a mistake to make a priori judgements about what parts of a program are really critical, since the universal experience of programmers who have been using measurement tools has been that their intuitive guesses fail.

• Donald Knuth, 1974

Print "profiling"¶

• First thing to try, print what you want to know
• Run with python -u for unbuffered mode

import time

t0 = time.time()
...  # your code here
print(f"ran ... in {time.time() - t0} s")

Scalene¶

• General sampling Python profiler for both CPU, GPU and memory
• Jupyter: %load_ext scalene + %%scalene
• Lightning: Might be buggy with Scalene

python -m scalene run my_script.py
python -m scalene view --cli

PyTorch profiler¶

# Plain PyTorch https://docs.pytorch.org/tutorials/recipes/recipes/profiler_recipe.html
from torch.profiler import profile
with profile(...) as prof:
  ...  # run the code you want to profile
print(prof.key_averages().table())
prof.export_trace("trace.json")

# PyTorch Lightning https://lightning.ai/docs/pytorch/stable/api_references.html#profiler
trainer = Trainer(..., profiler="pytorch")
...

• use https://ui.perfetto.dev/ to view JSON trace files

TensorFlow profiler and TensorBoard¶

• Install tensorboard_plugin_profile
• Use TensorBoard callback

# Profile from batches 10 to 15
tb_callback = tf.keras.callbacks.TensorBoard(profile_batch="10, 15")

Multi-GPU parallelism¶

• Task parallelism
• Embarassingly parallel
• Data parallelism, for speed-up
• For speed-up when single GPU efficiency is already good
• Flavours of model parallelism
• When the model doesn't fit on the GPU

Task parallelism¶

• When little to no communication is needed
• Inference on different data
• Training with different set-up (e.g. hyperparameter tuning)
• Use job-arrays or task farms

Distributed Data Parallelism¶

• Copy the model to each GPU and feed them different data
• Communicate gradient updates (all-reduce)

Pipeline parallelism¶

Fully Sharded Data Parallel¶

• Not available in TensorFlow
• All parameter tensors are fully distributed (Fully Sharded)
• Each GPU computes their own mini-batch (Data Parallel)

Tensor Parallelism¶

• Megatron LM paper paired row and column parallel layers

PyTorch¶

• Overview
• Distributed Data Parallel
• Fully Sharded Data Parallel

TensorFlow¶

• MultiWorkerMirroredStrategy

Basic LLM inference¶

• The very basics

Aside: Finding Free Ports¶

• Needed for a variety of different softwares, including torchrun, vllm and ray
• find_ports CLI utility available on Alvis

import random
import socket


def get_free_ports(num_ports=1):
    ports = list(range(2**15, 2**16))
    random.shuffle(ports)  # randomize to minimize risk of clashes
    free_ports = []

    for port in ports:
        if len(free_ports) >= num_ports:
            break

        with socket.socket(socket.AF_INET, socket.SOCK_STREAM) as s:
            try:
                s.bind(('', port))
                s.close()
                free_ports.append(port)  # if succesful, add port to list
            except OSError:
                continue # if port is in use, try another one

    if len(free_ports) < num_ports:
        raise RuntimeError("Not enough free ports.")

    return free_ports

HuggingFace Transformers Set-up¶

• Used by most LLM inference engines
• By defaults saves full models in home directory (out-of-quota)
• Set HF_HOME or if already downloaded specify absolute paths to model snapshot directory

vLLM Inference Engine¶

• vllm serve serves an LLM endpoint talking OpenAI API
• --tensor-parallel-size="$SLURM_GPUS_ON_NODE"
• --pipeline-parallel-size="$SLURM_NNODES"
• Alvis documentation

Further learning on LLMs¶

• NAISS LLM Workshop planned for later in 2026
• To be announced in the NAISS Training Newsletter

Further learning¶

• Alvis tutorial (slightly dated)
• NAISS Training Events: https://www.naiss.se/training/
• Questions related to training events: https://supr.naiss.se/support/?problem_type=training_event
